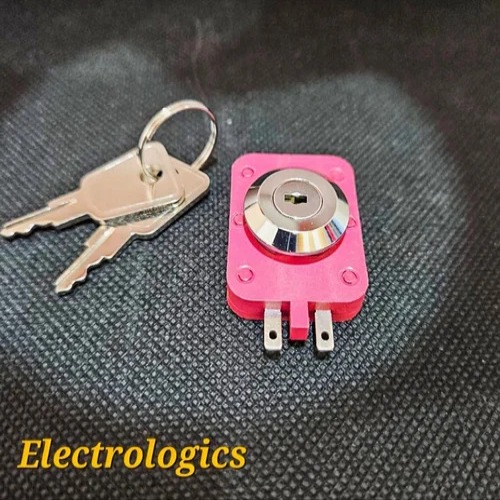

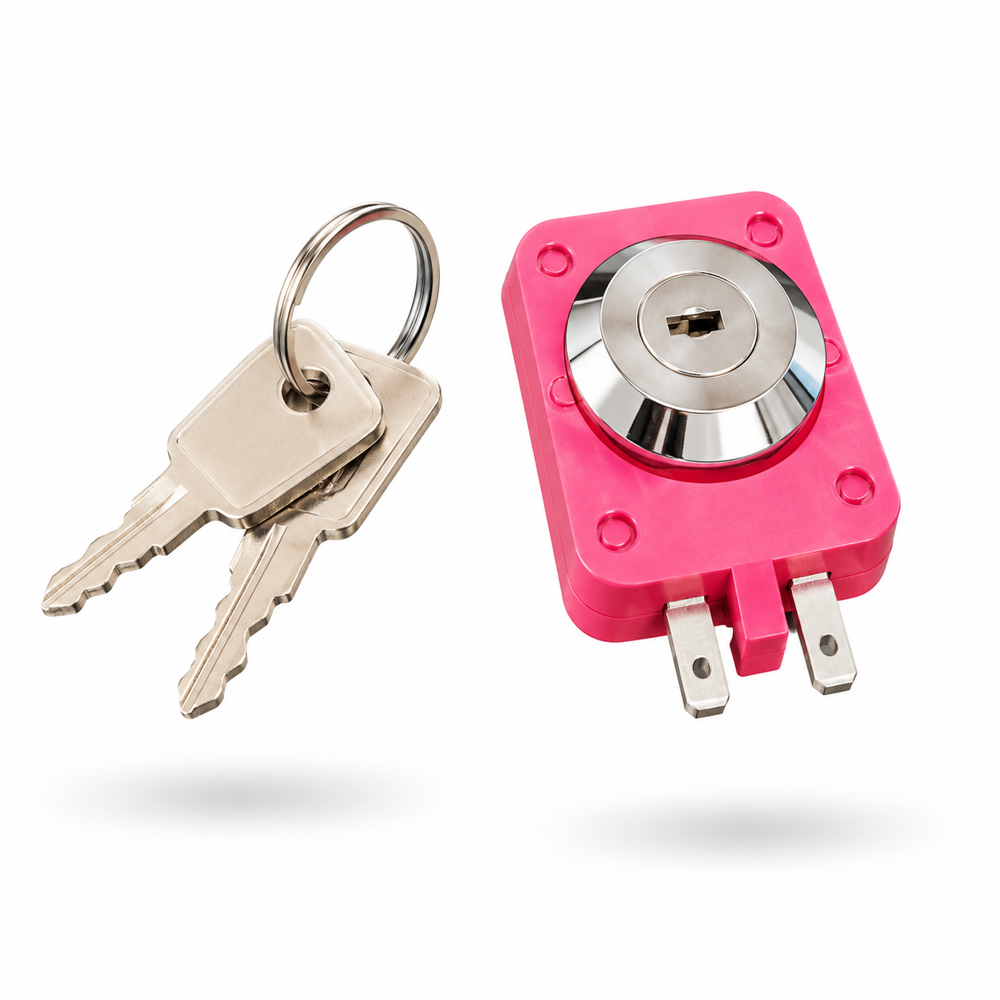

KLS-909 Keylock switch

About KLS-909 Keylock switch

The KLS-909 Keylock Switch is a key-operated electrical switching component intended for applications where switching access should be restricted to an authorized person with the appropriate key. Unlike a conventional toggle or push-button switch, a keylock switch uses a mechanical key to operate its internal contacts. This helps prevent accidental switching and provides an additional level of access control for electrical and electronic equipment.

Key-operated switches are commonly used in control panels, industrial machinery, electrical enclosures, security equipment, automation systems, and other devices where a controlled ON/OFF or mode-selection function is required. Depending on the specific model configuration, the switch may provide one or more operating positions, different key-removal positions, and different contact arrangements.

The switch is typically installed in a suitable panel or equipment enclosure, with its terminals connected to the control circuit according to the manufacturer's wiring diagram. When the key is turned, the internal contact mechanism changes state, allowing the connected circuit to be enabled, disabled, or switched between operating modes.

The KLS-909 should be selected according to its verified contact configuration, rated voltage and current, mounting dimensions, terminal arrangement, and key-removal function. These characteristics are important for ensuring compatibility with the intended equipment and reliable operation over repeated switching cycles.

Key Features

• Key-operated electrical switching mechanism

• Helps restrict operation to authorized users

• Designed for controlled switching in electrical or electronic equipment

• Can help prevent accidental operation when used in an appropriate control circuit

• Suitable for panel or equipment integration, subject to the exact model design

• Useful for equipment enable/disable functions and mode selection

• Requires compatibility between the switch rating and the connected electrical load

Typical Applications

• Industrial control panels

• Electrical and electronic equipment

• Machinery enable/disable circuits

• Automation and control systems

• Security and access-control equipment

• Equipment cabinets and enclosures

• Restricted-access operating controls
