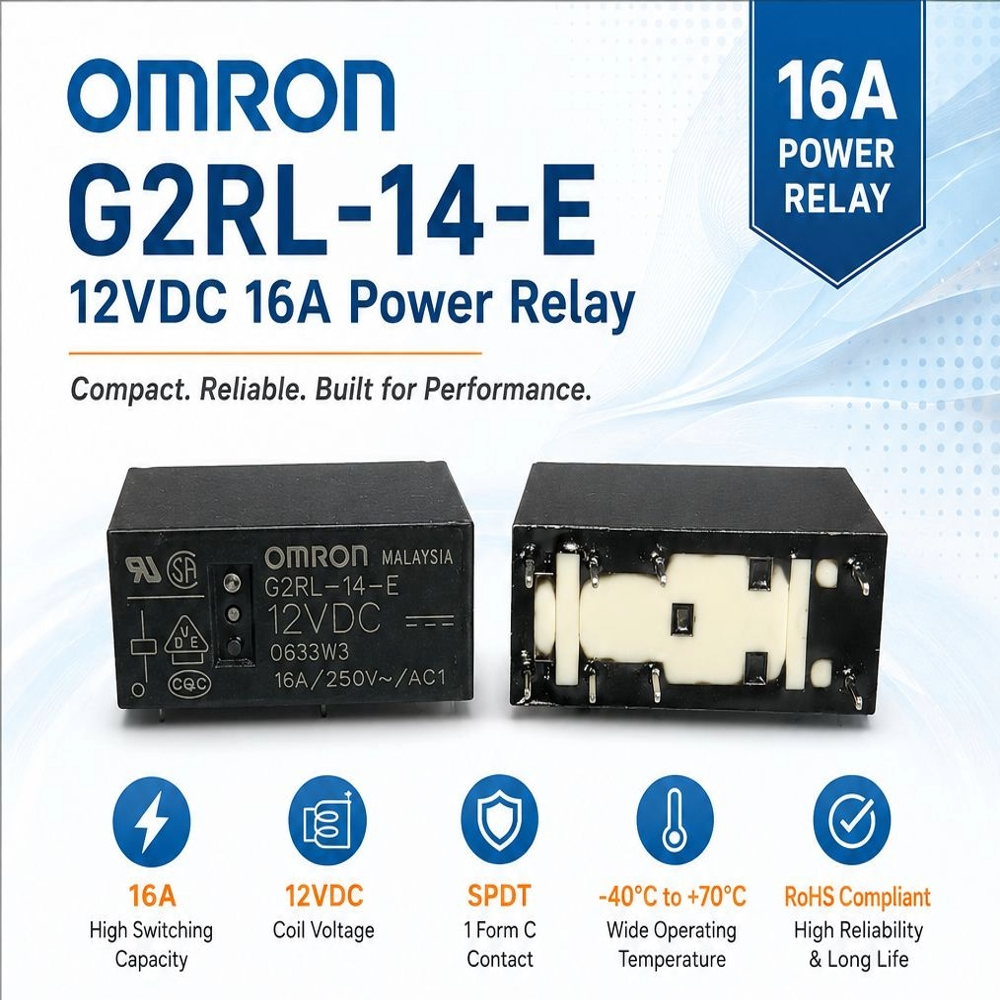

G2RL-14-E 12VDC 16Amp Relay

Name: G2RL-14-E 12VDC 16Amp Relay
Brand: ELECTROLOGICS DEVICES
Price: 86.0 INR
Availability: InStock

Price 86.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

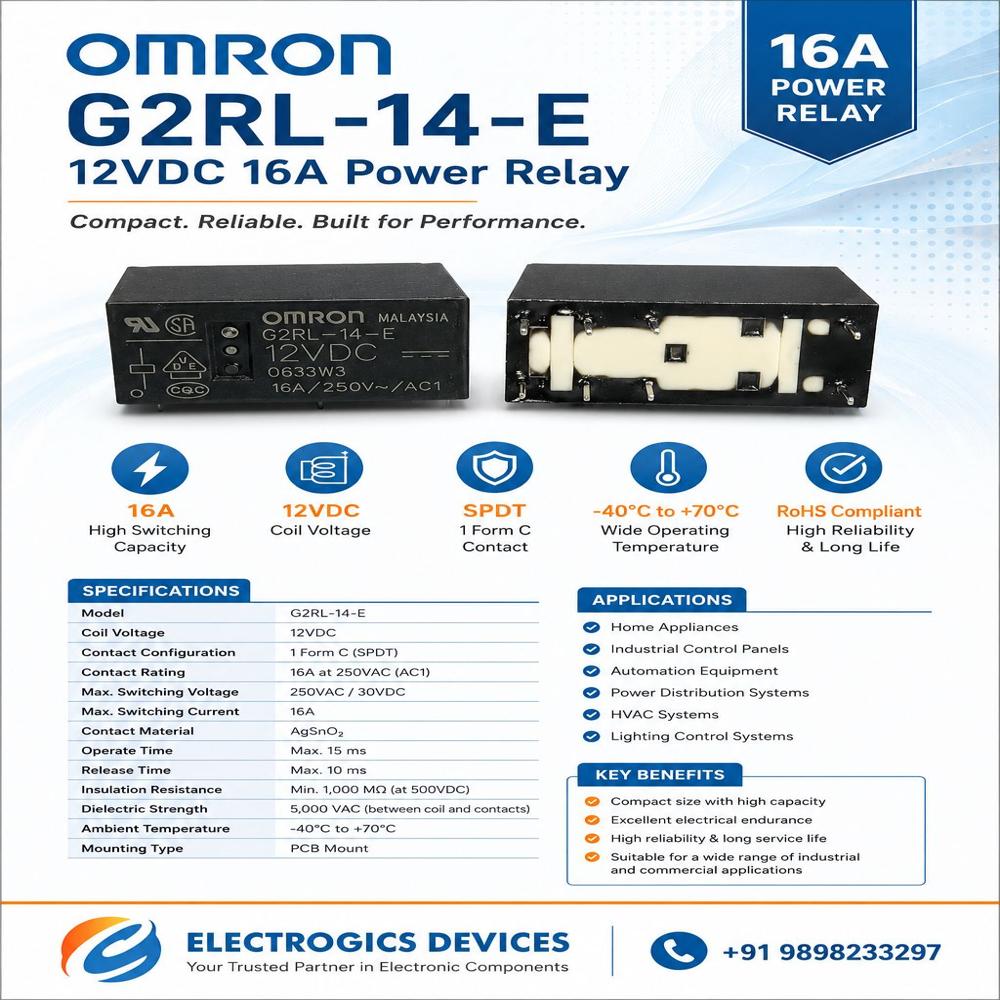

G2RL-14-E 12VDC 16Amp Relay Specification

Power Supply
DC

Usage
Switching, Automation Systems, Control Circuits

Components
Coil, Contact, Plastic Case

Power Source
12VDC

IP Rating
IP40 (Flux Tight)

Output
SPDT (Single Pole Double Throw) Contact

Features
High-capacity, Compact size, Low coil power consumption, RoHS compliant

Input
12 VDC Coil

Operating Temperature
-40C to +85C Celsius (oC)

Interface
Through Hole, PCB Mount

Response Time
Operate: Max. 15ms, Release: Max. 5ms Seconds

Product Type
Electromechanical Relay

Application
Industrial Control, Home Appliances, Power Management

Rated Voltage
12VDC Volt (V)

Supply Voltage
12 VDC Volt (v)

Size
Standard Miniature Relay

Dimension (L*W*H)
29 x 12.7 x 15.7 mm Millimeter (mm)

Function
General Purpose Electromechanical Relay

Color
Black Body, White Label

Weight
Approx. 15g Grams (g)

Usage & Applications
Industrial

Warranty
1 Year

Cable Type
Power Cable

Display Type
Nil

Rated Current
16 Ampere (amp)

Conductor
Copper

Capacity
16A 250VAC / 16A 30VDC Kg

Current Rating
16A max

Thickness
Approximately 15.7 mm Millimeter (mm)

Frequency
50/60 Hz (contact circuit) Hertz (HZ)

Contact Material
Ag Alloy

Relay Type
PCB Mount, General Purpose

Electrical Durability
50,000 operations min. (at rated load)

Minimum Switching Current
10 mA at 5 VDC

Contact Resistance
Max. 100 m

RoHS Compliance
Yes

Dielectric Strength
5,000 VAC between coil and contacts, 1,000 VAC between contacts

Mounting Type
PCB Mount

Coil Resistance
Approx. 320 (at 20C)

Maximum Switching Voltage
250VAC / 30VDC

Mechanical Durability
10,000,000 operations min.

Contact Form
SPDT (1 Form C)

G2RL-14-E 12VDC 16Amp Relay Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
1000 Pieces Per Day

Delivery Time
1 Days

About G2RL-14-E 12VDC 16Amp Relay

Experience phenomenal switching performance with the G2RL-14-E 12VDC 16Amp Relay-a stellar choice for those seeking reliability in automation systems and control circuits. This special relay features a champion SPDT (1 Form C) contact configuration, strong Ag Alloy contacts, IP40 protection, and impressive electrical durability for up to 50,000 operations at rated load. Benefit from significant savings when you buy online. Its compact PCB mount form and RoHS compliance make it a top pick for industrial controls, home appliances, and power management.

Diverse Application Media and Versatile Uses

The G2RL-14-E 12VDC 16Amp Relay excels in a wide range of applications. This general-purpose relay is a reliable solution for industrial automation, power management, and home appliance control. Its robustness allows use in control panels, HVAC systems, and power supplies. The relay seamlessly handles tasks in both commercial and domestic settings, showcasing its adaptability across different application media and environments, including machinery interfaces and switching modules.

Sample Policy, Payment Terms, and Delivery Approach

Our sample policy for the G2RL-14-E relay ensures prompt responses-samples can be handed over or exchanged upon proposal amount confirmation. We offer clear payment terms, including advance payment or as per agreement. Delivery time is swift, with dispatched units reaching you within the agreed window post-order confirmation. This ensures a streamlined process, from sample procurement to final delivery, prioritizing transparency and reliability for every customer.

FAQ's of G2RL-14-E 12VDC 16Amp Relay:

Q: How is the G2RL-14-E 12VDC 16Amp Relay beneficial for automation systems?

A: The G2RL-14-E 12VDC 16Amp Relay offers reliable, high-capacity switching, which makes it ideal for precise automation, ensuring safe and efficient operation in control circuits and industrial systems.

Q: What are the main applications of this relay?

A: This relay is commonly used in industrial controls, HVAC systems, home appliances, power management, and switching modules, thanks to its robust construction and versatile design.

Q: Where can I buy the G2RL-14-E relay online?

A: You can conveniently buy the G2RL-14-E relay online through authorized distributors, suppliers, and leading electronics retail platforms, ensuring ease of purchase and potential savings.

Q: What is the process for ordering a sample of the relay?

A: To request a sample, submit your proposal amount; the unit will be handed over or exchanged upon confirmation and agreement, following our streamlined sample policy.

Q: How durable is the G2RL-14-E in terms of mechanical or electrical operations?

A: This champion relay is designed for exceptional mechanical durability (10,000,000 operations minimum) and electrical durability (50,000 operations minimum at rated load), ensuring long-lasting performance.

Q: When can I expect delivery after placing an order?

A: Delivery times are fast; your relay will be dispatched once payment terms are met and order confirmation is complete, typically within the agreed delivery window.
