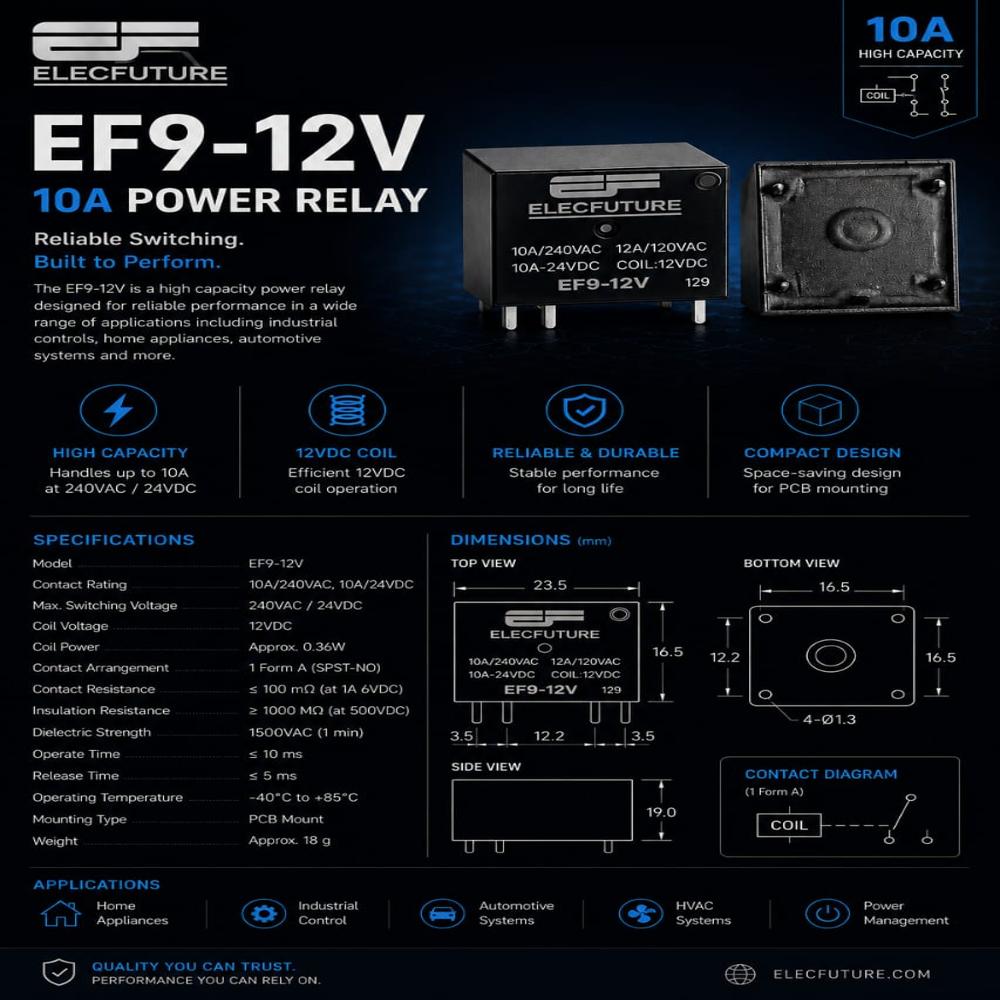

EF9-12v 10Amp Sugarcube Relay

Name: EF9-12v 10Amp Sugarcube Relay
Brand: ELECTROLOGICS DEVICES
Price: 25.0 INR
Availability: InStock

Price 25.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

EF9-12v 10Amp Sugarcube Relay Specification

Input
12V DC coil voltage

Operating Temperature
-40C to +85C Celsius (oC)

Output
Normally open (NO) and normally closed (NC) contacts

Interface
PCB mount

Response Time
Operate: 10ms, Release: 5ms Seconds

IP Rating
IP20

Components
Coil, armature, contacts, plastic enclosure

Power Source
DC coil

Power Supply
DC

Features
High switching capacity, compact design, PCB mounting, sealed plastic enclosure

Usage
Switching electrical loads

Product Type
Sugarcube Relay

Application
General purpose, industrial automation, electronic circuits, automotive, home appliances

Rated Voltage
12V DC Volt (V)

Supply Voltage
12V DC Volt (v)

Size
Standard sugarcube size

Dimension (L*W*H)
19mm x 15.5mm x 15.3mm Millimeter (mm)

Function
Electromechanical relay for switching electrical circuits

Color
Blue

Weight
Approx. 10g Grams (g)

Material
Highgrade Plastic

Rated Current
50 Milliampere (mA)

Capacity
10A switching current Kg

Current Rating
10A at 250VAC/30VDC

Thickness
Standard sugarcube form factor Inch

Frequency
50/60Hz (Contact switching, not coil) Hertz (HZ)

RoHS Compliance
Yes

Insulation Resistance
100M min. at 500V DC

Contact Material
Silver alloy

Electrical Life
100,000 operations min. (at rated load)

Contact Voltage Rating
250V AC, 30V DC

Coil Power Consumption
Approx. 0.36W

Mechanical Life
10,000,000 operations min.

Coil Resistance
Approx. 320 at 12V

Mounting Type
Through-hole (PCB)

Contact Arrangement
SPDT (Single Pole Double Throw)

Dielectric Strength
Between coil & contacts: 500V AC for 1 min

EF9-12v 10Amp Sugarcube Relay Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
1000 Pieces Per Day

Delivery Time
1 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

About EF9-12v 10Amp Sugarcube Relay

Introducing the EF9-12v 10Amp Sugarcube Relay-a must-have, highly affordable solution for all your switching needs. This distinguished relay is remarked for its impeccable performance, featuring a robust 10A switching current, SPDT arrangement, and silver alloy contacts for unbeatable reliability. With a compact sugarcube size and sealed plastic enclosure, it suits diverse applications including industrial automation, automotive, and home appliances. Boasting an electrical life of 100,000 operations and RoHS compliance, this top relay ensures consistent, safe, and efficient operation for every project.

Versatile Applications & Distinct Features

EF9-12v 10Amp Sugarcube Relay excels in a wide range of applications, from general-purpose electronic circuits to industrial automation and automotive systems. Its distinguished features include high switching capacity, a compact PCB-mount design, sealed enclosure for added protection, and reliable silver alloy contacts. The unbeatable mechanical life of 10 million cycles sets it apart as an industry leader and a top choice for engineers. The relay's RoHS compliance and high insulation resistance further ensure safety and durability.

Quick Dispatch with Customer-Focused Service

Order the EF9-12v 10Amp Sugarcube Relay at a remarkable sale price. Each unit is dispatched promptly to ensure timely delivery, meeting even the most urgent project deadlines. We operate from a dependable FOB port and accommodate flexible sample policies to address your project requirements effectively. Expect your relay to be carefully packed and shipped for swift and secure delivery, enabling reliable performance and satisfaction from the moment it arrives.

FAQ's of EF9-12v 10Amp Sugarcube Relay:

Q: How does the EF9-12v 10Amp Sugarcube Relay operate in an electrical circuit?

A: The relay operates as an electromechanical switch, using a 12V DC coil to control the switching between normally open (NO) and normally closed (NC) contacts, making it suitable for a wide range of electrical loads.

Q: What applications are best suited for this relay?

A: This relay is ideal for industrial automation, automotive applications, home appliances, and general-purpose electronic circuits due to its high switching capacity and compact, sealed design.

Q: When should I choose this relay over other models?

A: Choose the EF9-12v 10Amp Sugarcube Relay when you require a durable, affordable, and reliable SPDT relay for moderate to heavy-duty switching (up to 10A) and need a compact footprint for PCB mounting.

Q: Where is this relay typically mounted?

A: Designed for through-hole PCB mounting, the relay is most commonly integrated onto electronic circuit boards in factory automation panels, control systems, or electronic devices.

Q: What are the main benefits of using silver alloy contacts in this relay?

A: Silver alloy contacts offer remarkable electrical conductivity and resistance to wear, ensuring long-lasting, stable performance and an extended service life even under frequent operation.

Q: How do I know if the relay is compatible with my project?

A: Check your project's voltage (12V DC coil), current requirements (up to 10A), and PCB mounting compatibility. If these match, this relay is an excellent choice.
