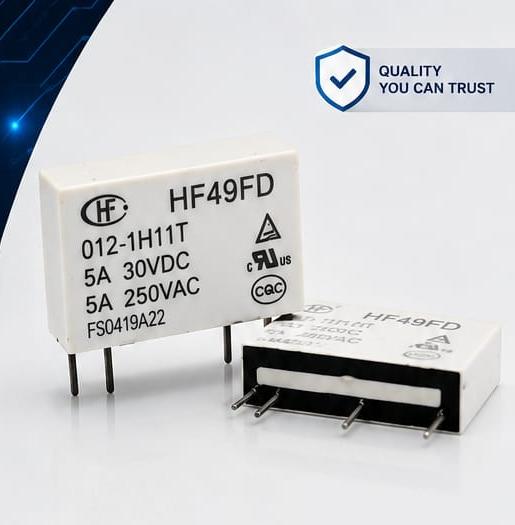

HF49FD-012 5Amp Mini Relay

Name: HF49FD-012 5Amp Mini Relay
Brand: ELECTROLOGICS DEVICES
Price: 51.0 INR
Availability: InStock

Price 51.0 INR/ Piece

Get a Price/Quote

MOQ : 50 Pieces

HF49FD-012 5Amp Mini Relay Specification

Features
Miniature size, low power consumption, high contact reliability, RoHS compliant

Operating Temperature
-40C to +85C Celsius (oC)

Input
12V DC coil input

Output
SPDT (Single Pole Double Throw) dry contact output

Components
Relay with coil and contacts

Usage
Switching & control circuits, PCB mounting

Interface
PCB Pins

Response Time
Approx. 10ms operate, 5ms release Seconds

Power Supply
DC

Power Source
Electric, driven by external DC supply

IP Rating
IP40

Product Type
Mini Relay

Application
Suitable for PCB, home appliance control, automation systems

Rated Voltage
12V DC Volt (V)

Supply Voltage
12V DC Coil Volt (v)

Size
Miniature size

Dimension (L*W*H)
19.0 x 15.5 x 15.3 mm Millimeter (mm)

Function
Miniature general purpose relay for switching applications

Color
Black body with white print

Weight
Approximately 5 grams Grams (g)

Rated Current
5 Amp Ampere (amp)

Capacity
5A 250VAC / 5A 30VDC Kg

Thickness
Standard relay enclosure, approx. 0.5 cm Millimeter (mm)

Current Rating
5A (at 250VAC/30VDC)

Frequency
50/60 Hz (contact load frequency) Hertz (HZ)

Dielectric Strength
Between coil and contacts: 4000VAC (1 min)

Electrical Life
100,000 operations (minimum at rated load)

Storage Temperature
-40C to +125C

Coil Power Consumption
Approx. 0.45W

Vibration Resistance
10-55Hz, 1.5mm double amplitude

Coil Resistance
Approx. 320 (at 12V)

Max Switching Voltage
250VAC / 125VDC

Release Voltage
0.9V DC min (at 20C)

Max Switching Power
1250VA / 150W

Mounting Type
PCB Mount

Shock Resistance
100m/s^2

Contact Material
Silver alloy

Mechanical Life
10,000,000 operations (minimum)

Insulation Resistance
1000 M min (at 500VDC)

Contact Form
SPDT (Single Pole Double Throw)

HF49FD-012 5Amp Mini Relay Trade Information

Minimum Order Quantity
50 Pieces

Delivery Time
1 Days

About HF49FD-012 5Amp Mini Relay

Last chance to procure the top-rated HF49FD-012 5Amp Mini Relay, a crackerjack choice for modern PCB designs! With praiseworthy features like a 5A capacity, 12V DC coil, top-notch silver alloy contacts, and an enlightened 10,000,000 mechanical life cycle, this mini relay excels in reliability and efficiency. Its compact size, robust dielectric strength (4000VAC), and RoHS compliance make it ideal for automation and control systems. Experience minimal power consumption, reliable switching, and seamless PCB mounting. Hurry, elevate your designs with this exceptional component before it's gone!
