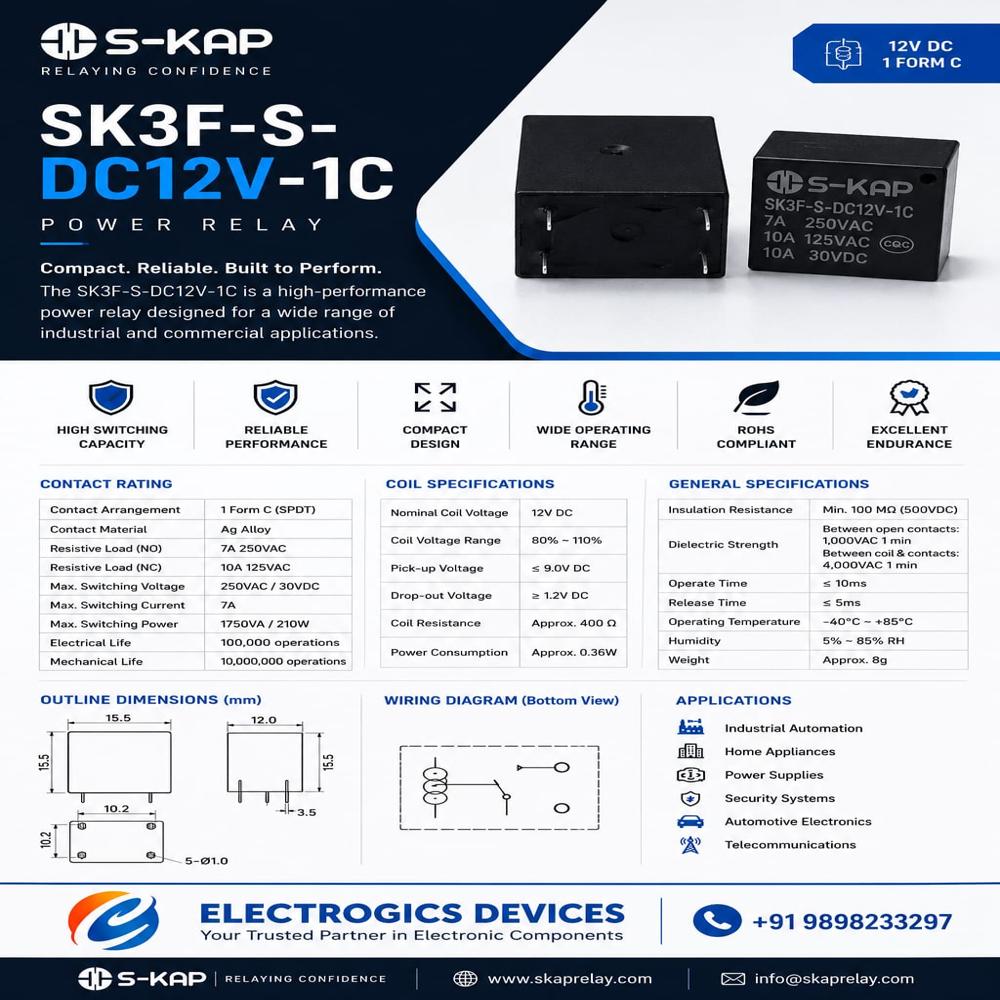

SK3F-S-DC12V 1CO Sugarcube Relay

Name: SK3F-S-DC12V 1CO Sugarcube Relay
Brand: ELECTROLOGICS DEVICES
Price: 20.0 INR
Availability: InStock

Price 20.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

SK3F-S-DC12V 1CO Sugarcube Relay Specification

Power Supply
DC

Input
12V DC Coil

Response Time
Max. 10 ms (Operate), Max. 5 ms (Release) Seconds

Components
Coil, Contacts, Housing, Terminals

Interface
PCB Mount

Features
Compact Design, High Insulation Resistance, Flame Retardant Case, RoHS Compliant

Power Source
Electric

Usage
General Purpose, PCB Mount

Operating Temperature
-40C to +85C Celsius (oC)

IP Rating
IP20

Output
1 Change Over (SPDT), 1CO Contact

Product Type
Sugarcube Relay

Application
Industrial, Automation, Control Panels, Home Appliances, Power Supply

Rated Voltage
12V DC Volt (V)

Supply Voltage
12V DC Volt (v)

Size
Miniature

Dimension (L*W*H)
19mm x 15.5mm x 15mm Millimeter (mm)

Function
Electromechanical switching relay

Color
Black

Weight
Approx. 10g Grams (g)

Capacity
10A 250VAC / 10A 30VDC Kg

Thickness
Standard Sugarcube Size Millimeter (mm)

Current Rating
10A

Frequency
50/60 Hz Hertz (HZ)

Electrical Life
100,000 operations (at rated load)

Contact Configuration
1 Form C (SPDT)

Coil Resistance
Approx. 320 (at 12VDC)

Coil Power Consumption
About 400mW

Max. Switching Voltage
250VAC / 30VDC

Dielectric Strength
500VAC (between coil & contacts)

Shock Resistance
100m/s2 (10G)

Mounting Type
Through Hole, PCB

Insulation Resistance
>100 M at 500VDC

Contact Resistance
<100 m

Contact Material
Silver Alloy

Mechanical Life
10,000,000 operations

Storage Temperature
-40C to +85C

Vibration Resistance
10-55 Hz, Double Amplitude 1.5mm

SK3F-S-DC12V 1CO Sugarcube Relay Trade Information

Minimum Order Quantity
100 Pieces

Delivery Time
1 Days

About SK3F-S-DC12V 1CO Sugarcube Relay

Grab the prodigious SK3F-S-DC12V 1CO Sugarcube Relay, now available in limited stock for those seeking unrivaled performance. Built with flawless precision, this highlighted relay supports a max switching voltage of 250VAC/30VDC and boasts superior insulation resistance above 100M. With a compact, flame retardant case and RoHS compliance, it ensures reliability in demanding automation, home appliance, and industrial applications. Its impressive mechanical lifespan of 10 million operations guarantees durability, while the silver alloy contacts and quick response times make it an essential, general-purpose PCB mount relay for any project.

Versatile Applications: Industrial, Plant, and More

The SK3F-S-DC12V 1CO Sugarcube Relay excels in plant automation, general industrial control panels, home appliances, and power supplies. Its robust construction and compact design allow it to seamlessly integrate with a wide range of application media, supporting both general and specific operational needs. Whether for switching tasks in automation lines or use in energy control systems, this relay delivers dependable performance and adaptability, making it a go-to component for engineers and technicians alike.

Supply Ability, Valuation, and Shipment Terms

Our highlighted relay is always valued for its dependable stock availability and prompt delivery. SK3F-S-DC12V 1CO orders are shipped securely, ensuring product integrity upon arrival. Shipment processes are optimized for both domestic and international markets, with flexible payment terms for traders, distributors, and wholesalers. With every shipment, we guarantee careful valuation and packing, ensuring you always receive a high-quality relay, wherever your main domestic market resides.

FAQ's of SK3F-S-DC12V 1CO Sugarcube Relay:

Q: How is the SK3F-S-DC12V 1CO Sugarcube Relay used in plant automation and industrial applications?

A: The relay is often integrated into plant automation systems, controlling high-power machinery or switching circuits in control panels to enhance operational efficiency and safety.

Q: What are the main benefits of using this relay in automation and home appliance applications?

A: This relay offers flawless switching, high insulation resistance, and a flame retardant case, making it reliable for both automation solutions and home appliances while ensuring long-term durability.

Q: Where can the SK3F-S-DC12V 1CO Sugarcube Relay be mounted?

A: It is designed specifically for PCB (printed circuit board) mounting, allowing easy integration into compact and space-constrained electronic assemblies.

Q: What is the process for ordering and shipment of this relay?

A: Orders can be placed through authorized distributors, suppliers, or traders. Once ordered, the relay is shipped securely, with prompt handling to ensure timely delivery and product integrity.

Q: When should I choose this relay over others for my project?

A: This relay is ideal when a combination of compact size, high electrical durability, and reliable switching is required, especially in automation, industrial, or general-purpose applications.
