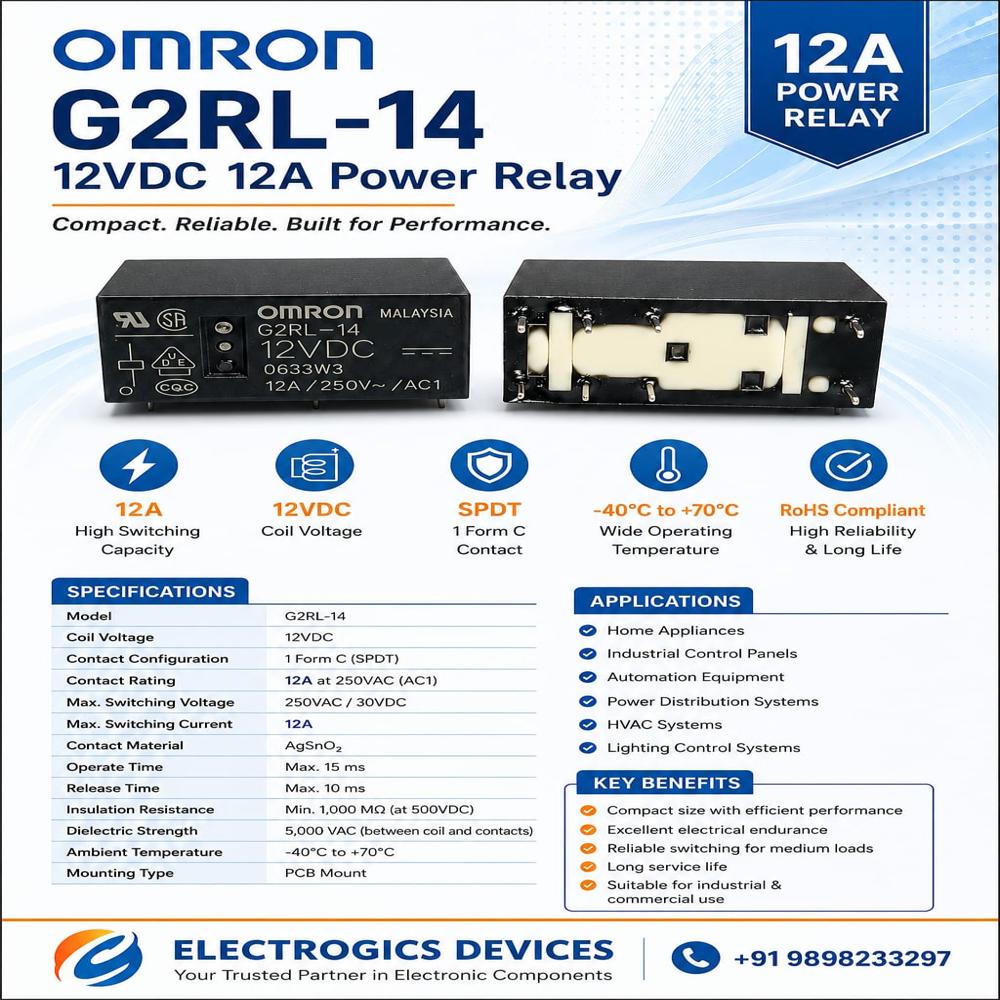

G2RL-14 12VDC 12Amp Relay

Name: G2RL-14 12VDC 12Amp Relay
Brand: ELECTROLOGICS DEVICES
Price: 63.6 INR
Availability: InStock

Price 63.6 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

G2RL-14 12VDC 12Amp Relay Specification

Input
12V DC Coil

Thermal Conductivity
0 Calorie (IT)/second/centimeter/°C

Features
High insulation resistance, Slim type, Sensitive coil, RoHS compliant

Interface
PCB terminal pins

Output
SPDT (Single Pole Double Throw)

Power Source
External DC power supply

Usage
Switching, Isolation, Industrial Automation

IP Rating
IP40

Response Time
Max 10 ms (Operate), Max 5 ms (Release) Seconds

Components
Coil, Contacts, Housing, Terminal Pins

Operating Temperature
-40C to +85C Celsius (oC)

Power Supply
DC

Product Type
PCB Power Relay

Application
HVAC, Industrial Equipment, Power Supply, Home Appliances

Rated Voltage
12VDC Volt (V)

Supply Voltage
12VDC Volt (v)

Size
Small

Dimension (L*W*H)
29 x 12.7 x 15.7 mm Millimeter (mm)

Function
Electromechanical Relay

Color
Black

Weight
15g (approx) Grams (g)

Rated Current
12 Ampere (amp)

Current Rating
12A max

Thickness
7.2 mm (Body) Millimeter (mm)

Capacity
12A at 250VAC / 24VDC Kg

Frequency
50 / 60 Hz (contact switching) Hertz (HZ)

Mounting Type
PCB Mount

Mechanical Life
10,000,000 operations minimum

Coil Resistance
320 (at 20C)

Maximum Switching Voltage
250VAC / 30VDC

Electrical Life
100,000 operations minimum (at rated load)

Contact Configuration
1 Form C (SPDT)

Dielectric Strength (Between coil & contacts)
5,000 VAC, 1 min

Maximum Switching Power
3,000VA / 300W

Contact Material
Silver alloy

Contact Resistance
100 m max (at 1A 6VDC)

Insulation Resistance
1,000 M min. (at 500 VDC)

G2RL-14 12VDC 12Amp Relay Trade Information

Minimum Order Quantity
100 Pieces

Delivery Time
1 Days

About G2RL-14 12VDC 12Amp Relay

Find the enviable G2RL-14 12VDC 12Amp Relay, designed for superior industrial and automation needs. With a blue-ribbon contact configuration of 1 Form C (SPDT) and built using a gorgeous silver alloy, this relay ensures reliable switching every time. Its high insulation resistance, slim build, and sensitive coil make it ideal for HVAC, power supplies, and home appliances. Utilise our special offer by adding this robust component to your cart now-experience dependable performance in a compact, RoHS-compliant form factor.

Exceptional Applications and Outstanding Features

The G2RL-14 12VDC 12Amp Relay is engineered for a diverse range of applications including industrial automation, HVAC systems, and power supplies. Its 12A capacity, high dielectric strength, and compact PCB mount design make it advantageous over standard relays. Enjoy an extended mechanical and electrical life, RoHS compliance, and a slim body that fits easily into packed circuit boards-setting it apart as a reliable choice for demanding environments.

Efficient Delivery and Global Shipping Options

Shipment for the G2RL-14 12VDC 12Amp Relay is seamless and prompt once a purchase order is confirmed. We offer worldwide drop-off services via major FOB ports to deliver your order efficiently to many export markets. Count on timely processing and reliable logistics for your business, ensuring you receive your relay components exactly when and where you need them.

FAQ's of G2RL-14 12VDC 12Amp Relay:

Q: How do I install the G2RL-14 12VDC 12Amp Relay on my PCB?

A: To install, align the PCB terminal pins with your board layout, ensuring correct polarity for the 12VDC coil, and solder each pin securely for reliable operation.

Q: What are the main benefits of using this relay in industrial automation?

A: This relay offers high switching capacity, robust insulation, rapid response times, and exceptional mechanical life, making it perfect for long-term, high-load industrial applications.

Q: When will my order for the G2RL-14 relay ship after purchase?

A: Your order typically ships promptly after your purchase order confirmation. Exact times may vary based on your region and selected shipping method.

Q: Where can this relay be effectively utilised?

A: It's ideal for use in HVAC systems, industrial equipment, power supplies, and household appliances where reliable, high-current switching is needed.

Q: What is the process for ensuring relay compatibility?

A: Review your application's voltage, current, and mounting requirements. Ensure the relay's 12VDC coil and 12A switching capacity match your system specifications.
