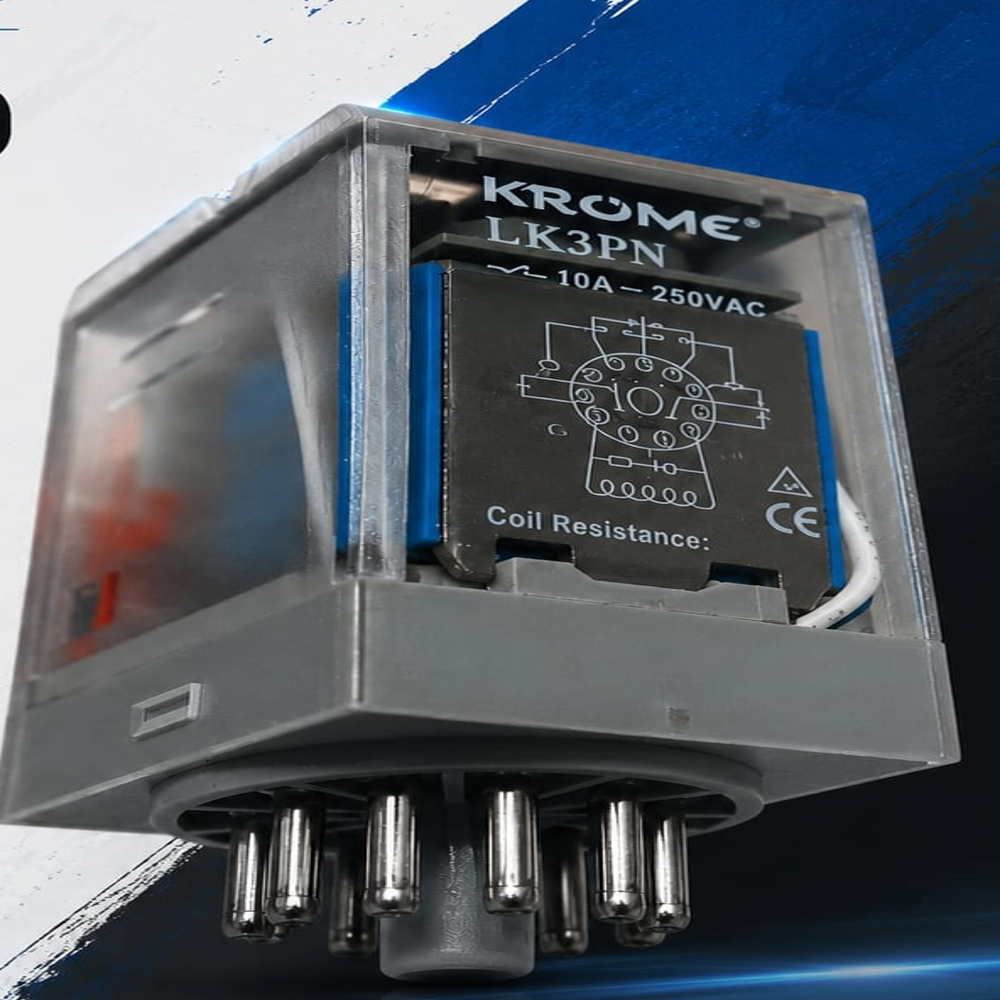

LK3P24VDC 10Amp Relay

Name: LK3P24VDC 10Amp Relay
Brand: ELECTROLOGICS DEVICES
Price: 250.0 INR
Availability: InStock

Price 250.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

LK3P24VDC 10Amp Relay Specification

Power Source
DC powered

Response Time
<20ms operate, <10ms release Seconds

Operating Temperature
-40C to +85C Celsius (oC)

Output

Power Supply
DC

Interface
PCB/Socket mount

IP Rating
IP20

Features
High switching capacity, compact design, reliable operation

Usage
Industrial automation, control panels

Input
24V DC coil

Components
Relay coil and contacts

Product Type
Relay

Application
Control circuits, switching applications

Rated Voltage
24V DC Volt (V)

Supply Voltage
24V DC Volt (v)

Size
Small

Dimension (L*W*H)
28.5 x 21.5 x 36 mm Millimeter (mm)

Function
Electromechanical switching

Color
Black

Weight
Approx. 35g Grams (g)

Rated Current
10 Ampere (amp)

Capacity
10A max switching Kg

Thickness
Standard Millimeter (mm)

Current Rating
10A (at 250V AC/30V DC)

Frequency
50/60Hz (general applications) Hertz (HZ)

Electrical Life
100,000 operations (at rated load)

Insulation Resistance
>100M (at 500V DC)

Contact Material
Silver alloy

Mounting Type
PCB or socket mountable

Contact Arrangement
SPDT (Single Pole Double Throw)

Dielectric Strength
1500V AC (between coil and contacts)

Coil Resistance
Approx. 288

Number of Pins
5

Mechanical Life
10,000,000 operations

Maximum Switching Voltage
250V AC / 30V DC

LK3P24VDC 10Amp Relay Trade Information

Minimum Order Quantity
10 Pieces

Delivery Time
1 Days

About LK3P24VDC 10Amp Relay

The LK3P24VDC 10Amp Relay is a highlighted, must-have component for any industrial automation or control panel project. Engineered with dominant SPDT arrangement and sterling silver alloy contacts, this top-drawer relay ensures reliable, high-capacity switching of up to 250V AC/30V DC at 10 amps. Designed for both PCB and socket mounting, it boasts exceptional insulation resistance, robust dielectric strength, and a compact, standard footprint-making it ideal for demanding switching applications. Jump on dependable performance with a mechanical life of 10 million operations and electrical longevity up to 100,000 cycles at rated load.

Advanced Features & Versatile Usage

Used across industrial automation and dominant control circuits, the LK3P24VDC 10Amp Relay stands out due to its compact design and robust 10A switching capacity. Key features include a sterling SPDT contact arrangement, rapid response times, reliable electromechanical switching, and high insulation resistance. Extra features like IP20 protection and broad operating temperature range (-40C to +85C) ensure it remains a must-have solution for diverse and challenging environments.

Fast Delivery, Samples & Domestic Coverage

Jump on the opportunity with LK3P24VDC relay samples available at the lowest price. Order processing is efficient, ensuring your relay is ready for prompt drop-off. Delivery times are kept short to serve your urgent requirements. With a dominant presence in the main domestic market, quick fulfillment and local support are always available. Securing this relay means guaranteed service excellence and reliable order handling from distributor to end-user.

FAQ's of LK3P24VDC 10Amp Relay:

Q: How do I mount the LK3P24VDC 10Amp Relay in my control panel?

A: The LK3P24VDC Relay can be easily mounted on a PCB or installed using a socket, providing flexibility for various control panel designs.

Q: What makes the LK3P24VDC Relay a must-have for industrial automation?

A: This relay's sterling silver alloy contacts, high 10A switching capacity, and compact, robust build ensure reliable and dominant performance in automation and control applications.

Q: When can I expect my order to be processed and delivered?

A: Order processing is swift and supported by prompt drop-off, meaning your relay is usually dispatched within the shortest possible delivery time for the main domestic market.

Q: Where is the LK3P24VDC 10Amp Relay most commonly used?

A: The relay is widely used in industrial automation, control panels, and switching circuits that require reliable, high-capacity performance.

Q: What are the benefits of choosing this top-drawer relay?

A: You gain a compact yet powerful solution offering a long mechanical and electrical life, high dielectric strength, and consistent operation-even in demanding environments.

Q: How does the sample request process work for this relay?

A: You can request a sample at the lowest price, with streamlined order processing and efficient delivery ensuring quick access for evaluation and integration.
