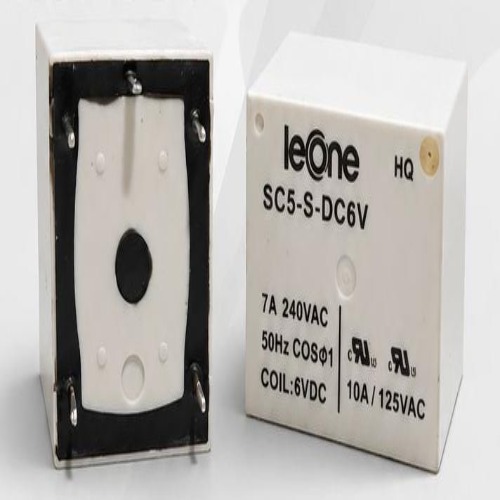

SC-5-DC6V 7Amp Sugarcube Relay

Name: SC-5-DC6V 7Amp Sugarcube Relay
Brand: ELECTROLOGICS DEVICES
Price: 25.0 INR
Availability: InStock

Price 25.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

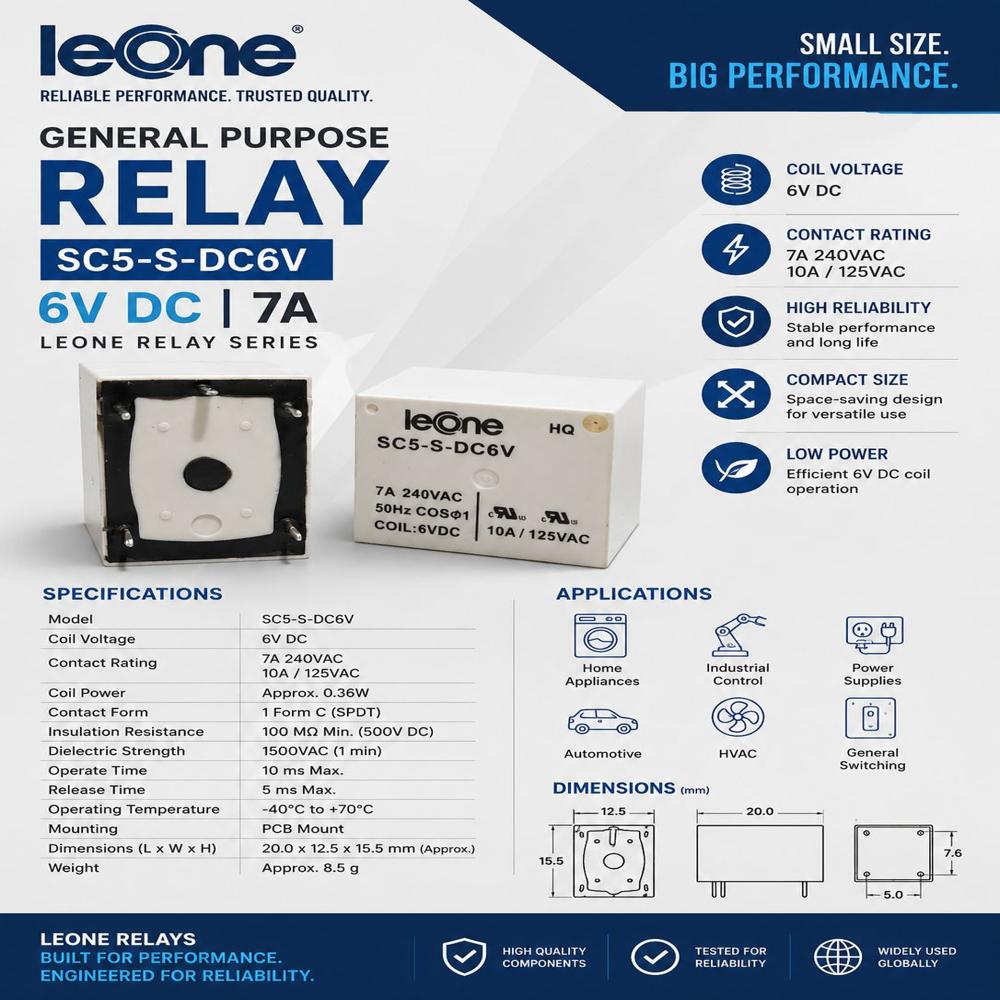

SC-5-DC6V 7Amp Sugarcube Relay Specification

Features
Compact, High Switching Capacity, Low Coil Power Consumption

Power Supply
Direct Current (DC)

Power Source
External DC Supply

Output
SPDT (Single Pole Double Throw), 7A 250VAC/30VDC

Interface
PCB Mount

Thermal Conductivity
Standard for relay housing Calorie (IT)/second/centimeter/°C

Operating Temperature
-40C to +70C Celsius (oC)

Usage
Electrical Control Circuit

Response Time
10ms (Operate), 5ms (Release) Seconds

IP Rating
IP20 (Protected against finger contact)

Input
6V DC Coil Input

Components
Coil, Contacts, Plastic Housing

Product Type
Sugarcube Relay

Application
Home Appliances, Automation Circuits, Power Supplies

Rated Voltage
6V DC Volt (V)

Supply Voltage
6V DC Volt (v)

Size
Miniature

Dimension (L*W*H)
19.6mm 15.6mm 15.0mm Millimeter (mm)

Function
Electromagnetic Switching Relay

Color
Black

Weight
Approx. 12g Grams (g)

Rated Current
7 Ampere (amp)

Current Rating
7A

Capacity
7 Ampere Switching Current Kg

Thickness
Standard Industry Sugarcube Size Millimeter (mm)

Frequency
50/60 Hz (Load Side) Hertz (HZ)

Mechanical Life
10,000,000 operations

Insulation Resistance
100 M (500 VDC)

Contact Material
Silver Alloy

Contact Arrangement
1 Form C (SPDT)

Mounting Type
PCB (Printed Circuit Board) Mount

Electrical Life
100,000 operations (at rated load)

Dielectric Strength
500VAC (Between coil & contact)

Maximum Switching Power
1750VA / 210W

Coil Resistance
72 (Ohms)

Maximum Switching Voltage
250VAC / 30VDC

SC-5-DC6V 7Amp Sugarcube Relay Trade Information

Minimum Order Quantity
100 Pieces

Delivery Time
1 Days

About SC-5-DC6V 7Amp Sugarcube Relay

Last Chance to secure the premier SC-5-DC6V 7Amp Sugarcube Relay-an in-demand, top-rated, and peerless switching solution. Decorated for reliability, this miniature SPDT relay boasts a 7A switching capacity at 250VAC/30VDC, using a silver alloy contact for superior conductivity. Its compact PCB-mount design fits seamlessly into automation circuits, power supplies, and home appliances. With 10 million mechanical operations and low coil power consumption, the SC-5-DC6V defines enduring performance. Tested up to 100,000 electrical cycles at rated load, it's the choice of discerning professionals.

Exceptional Performance and Versatile Application

The SC-5-DC6V 7Amp Sugarcube Relay offers significant competitive advantages including a decorated operating life, fast response times, and high switching capacity. Used extensively across home appliances, automation circuits, and power supply units, it brings peerless control to your electrical projects. Its robust SPDT configuration ensures dependable performance in diverse application surfaces, making it the favored relay for both industrial and domestic installations seeking premier reliability.

Fast Sampling and Reliable Domestic Dispatch

Maximize market value with the SC-5-DC6V by requesting a quick-dispatch sample to verify its peerless quality firsthand. Samples are shipped promptly for evaluation and the main domestic market is well-supported for rapid logistics. Our sample policy ensures that potential partners can assess compatibility with minimal delay, securing top-rated components with minimal effort and immediate confidence in product performance.

FAQ's of SC-5-DC6V 7Amp Sugarcube Relay:

Q: How is the SC-5-DC6V 7Amp Sugarcube Relay installed on a circuit board?

A: The relay is designed for PCB (Printed Circuit Board) mounting, ensuring secure and straightforward installation by soldering its terminals directly onto the circuit board.

Q: What benefits does the silver alloy contact material provide?

A: Silver alloy contacts offer superior conductivity, enhanced durability, and increased resistance to wear, making the relay highly reliable for demanding switching operations.

Q: Where can I use the SC-5-DC6V relay in my projects?

A: This relay is suitable for home appliances, automation systems, power supplies, and any electrical control circuits requiring reliable electromagnetic switching.

Q: What is the process for obtaining a sample of the SC-5-DC6V relay?

A: To request a sample, contact the supplier directly. Quick dispatch is available, with samples shipped rapidly to support evaluation and decision-making.

Q: What competitive advantages does the SC-5-DC6V relay offer compared to other relays?

A: It offers a decorated mechanical life of up to 10 million operations, high switching capacity of 7A, compact size, low coil power consumption, and fast response-making it a top-rated and in-demand component.
