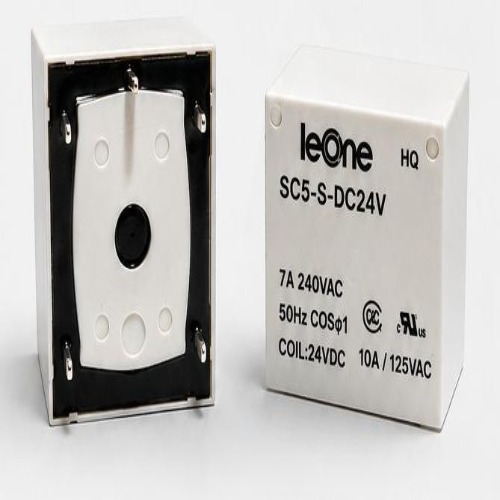

SC5-S-DC24V 7Amp Sugarcube Relay

Name: SC5-S-DC24V 7Amp Sugarcube Relay
Brand: ELECTROLOGICS DEVICES
Price: 28.0 INR
Availability: InStock

Price 28.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

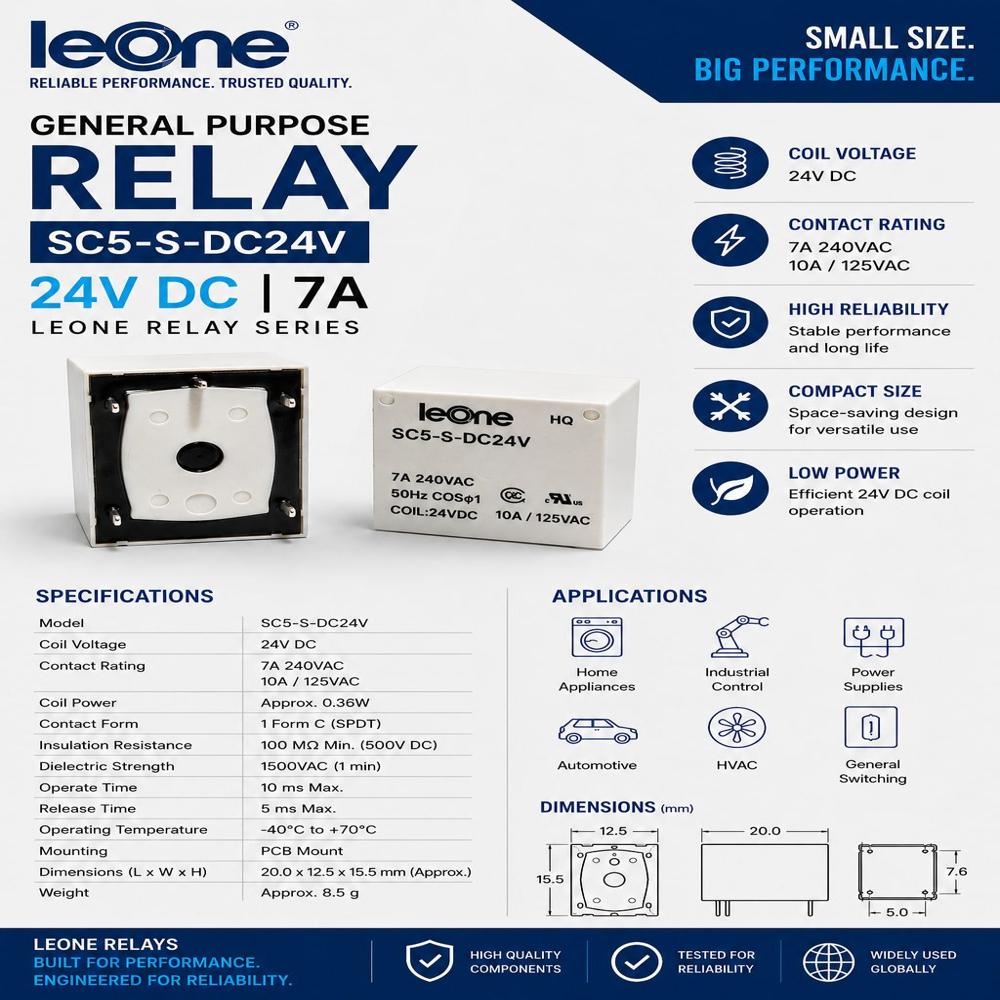

SC5-S-DC24V 7Amp Sugarcube Relay Specification

Input
24V DC Coil

Response Time
<10 ms operate, <5 ms release Seconds

Components
Plastic shell, copper contacts, coil

IP Rating
IP20

Interface
PCB mount

Operating Temperature
-40C to +85C Celsius (oC)

Output
SPDT (Single Pole Double Throw) contact

Power Source
Electromagnetic (powered by control signal)

Power Supply
DC

Usage
General purpose control and automation

Features
Compact size, high switching capacity, dustproof

Product Type
Sugarcube Relay

Application
Industrial automation, appliances, control panels, electronics

Rated Voltage
24V DC Volt (V)

Supply Voltage
24V DC Volt (v)

Size
Miniature (sugarcube) form factor

Dimension (L*W*H)
19mm x 15.5mm x 15.3mm Millimeter (mm)

Function
Electromagnetic relay for switching electrical circuits

Color
White

Weight
Approx. 10g Grams (g)

Rated Current
7 Ampere (amp)

Material
Highgrade Plastic

Current Rating
7A

Capacity
7A@250VAC / 7A@30VDC Kg

Frequency
50/60 Hz (applicable for switching AC) Hertz (HZ)

Maximum Switching Power
1750VA (AC) / 210W (DC)

Contact Resistance
100m (at 6VDC, 1A)

Mechanical Life
10,000,000 operations (min)

Contact Material
Silver alloy

Dielectric Strength
500V AC (between coil & contacts)

Insulation Resistance
>100M (500V DC)

Contact Arrangement
1 Form C (SPDT)

Mounting Type
Through hole/PCB mount

Electrical Life
100,000 operations (min)

Coil Power Consumption
Approx. 0.36W

SC5-S-DC24V 7Amp Sugarcube Relay Trade Information

Minimum Order Quantity
100 Pieces

Delivery Time
1 Days

About SC5-S-DC24V 7Amp Sugarcube Relay

Experience kingly performance at an unbeatable price with the SC5-S-DC24V 7Amp Sugarcube Relay. Capitalise on this classic, compact solution, designed to provide extraordinary reliability for your automation and control needs. Featuring a special silver alloy contact arrangement (SPDT), this relay guarantees impressive mechanical and electrical life, ensuring long-lasting switching even under rigorous use. Its through-hole/PCB mount makes installation simple, while the robust insulated casing and high switching power capacity stand ready for both AC and DC applications.

Special Features and Application Surface

The SC5-S-DC24V 7Amp Sugarcube Relay stands out for its extraordinary compactness and classic through-hole/PCB mount design, ideal for tight spaces. With a high switching capacity of 7A and a dustproof black plastic shell, it is specially crafted for general-purpose control and industrial automation. Used as a dependable electromagnetic relay, it finds application in control panels, appliances, and electronic devices, delivering reliability in demanding environments across a broad operating temperature range.

Certifications, Delivery Schedule, and Samples

Every SC5-S-DC24V Sugarcube Relay undergoes rigorous quality assurance for unmatched performance. The asking price includes industry-standard certifications. Packing & dispatch are handled by experienced teams to ensure timely delivery, with most orders shipping within an estimated 2-4 business days. Sample units are available upon request, allowing you to evaluate functionality before committing to larger orders, making this relay a preferred choice among discerning engineers and buyers alike.

FAQ's of SC5-S-DC24V 7Amp Sugarcube Relay:

Q: How does the SC5-S-DC24V Sugarcube Relay enhance electrical circuit switching?

A: The relay incorporates a special silver alloy SPDT contact arrangement and fast response times, resulting in efficient, reliable, and safe switching of both AC and DC circuits for a variety of control and automation applications.

Q: What surfaces and applications are suitable for this relay?

A: Its compact, through-hole/PCB mount design makes it perfect for automation systems, control panels, appliances, and various electronic devices requiring robust switching performance.

Q: When can I expect the delivery of the SC5-S-DC24V relay after placing an order?

A: Packing and dispatch usually occur within 2-4 business days from order confirmation, ensuring you receive your relay promptly and securely packed.

Q: Where can I use the SC5-S-DC24V relay for optimal performance?

A: For optimal performance, use it in industrial automation, electronic appliances, and any setup needing dependable switching within the -40C to +85C temperature range.

Q: What certifications and assurances come with purchasing the relay?

A: The relay comes certified to meet industry standards and is quality tested to guarantee long mechanical and electrical life, providing peace of mind for your business or engineering needs.

Q: Is a sample of the SC5-S-DC24V relay available before bulk purchase?

A: Yes, sample units are available on request, allowing you to assess the relay's extraordinary features and compatibility before placing a bulk order.
