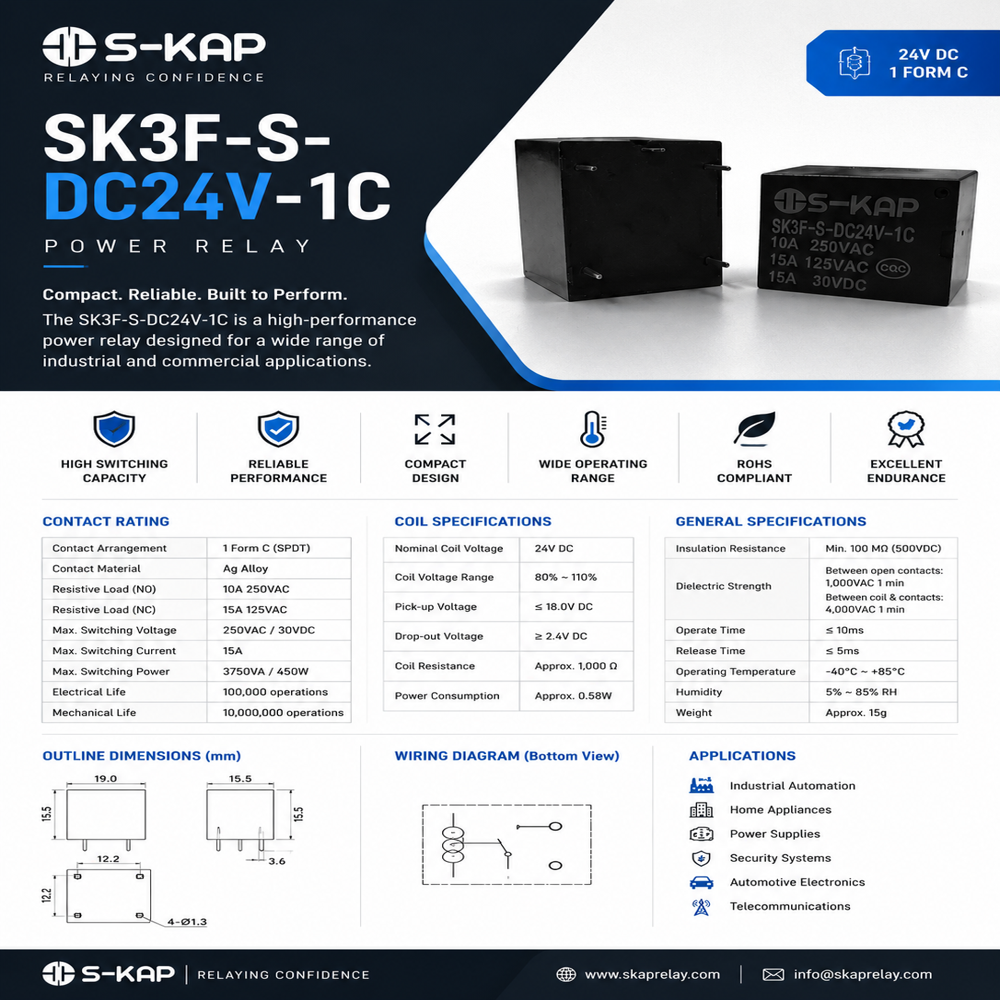

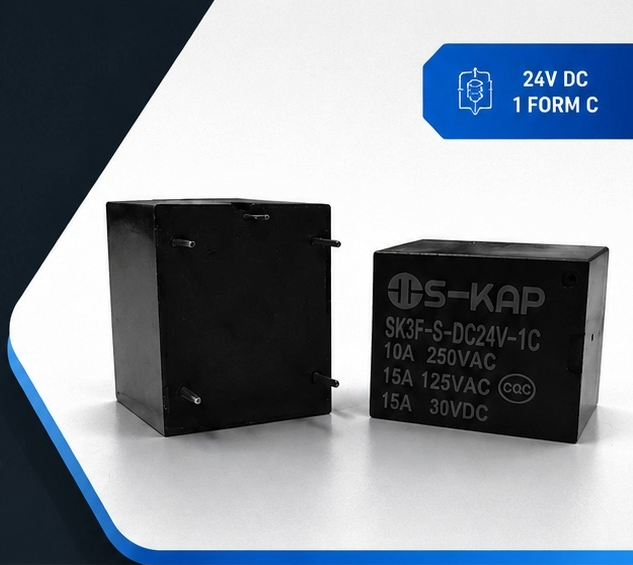

SK3F-S-DC24V-1C Sugarcube Relay

Name: SK3F-S-DC24V-1C Sugarcube Relay
Brand: ELECTROLOGICS DEVICES
Price: 25.0 INR
Availability: InStock

Price 25.0 INR/ Piece

Get a Price/Quote

MOQ : 500 Pieces

SK3F-S-DC24V-1C Sugarcube Relay Specification

Interface
PCB mount

Components
Copper contacts, plastic case, electromagnetic coil

Output
SPDT (Single Pole Double Throw)

Power Source
External DC

Response Time
Typically <10 ms (operate), <5 ms (release) Seconds

IP Rating
IP40

Features
High reliability, compact size, low power consumption

Power Supply
DC

Usage
Control panel, automation, electronic switching

Operating Temperature
-40C to +85C Celsius (oC)

Input
24V DC coil voltage

Product Type
Sugarcube Relay

Application
General purpose switching, control circuits

Rated Voltage
24V DC Volt (V)

Supply Voltage
24V DC Volt (v)

Size
Standard sugarcube (miniature) type

Dimension (L*W*H)
19.0 x 15.5 x 15.3 mm Millimeter (mm)

Function
Electromechanical relay for switching circuits

Color
Black

Weight
Approx. 15g Grams (g)

Material
Highgrade Plastic

Rated Current
10 Ampere (amp)

Conductor
Copper

Thickness
Standard relay body Millimeter (mm)

Capacity
10A at 250VAC / 10A at 30VDC Kg

Current Rating
10A

Frequency
50/60Hz capable switching Hertz (HZ)

Dielectric Strength (Between open contacts)
1000VAC 50/60Hz for 1 min

Insulation Resistance
100M (500VDC)

Electrical Life
100,000 operations minimum (at rated load)

Contact Resistance
100 m (at 6VDC, 1A)

Dielectric Strength (Between coil & contacts)
5000VAC 50/60Hz for 1 min

Contact Arrangement
1C (SPDT - Single Pole Double Throw)

Contact Material
Ag alloy

Mechanical Life
10,000,000 operations minimum

Mounting Type
PCB mountable

Coil Power
Approximately 0.36W

SK3F-S-DC24V-1C Sugarcube Relay Trade Information

Minimum Order Quantity
500 Pieces

Delivery Time
1 Days

About SK3F-S-DC24V-1C Sugarcube Relay

The SK3F-S-DC24V-1C Sugarcube Relay is a hot-selling solution in the realm of general-purpose switching. Highlighted by its matchless 10A capacity at 250VAC/30VDC and unrivaled mechanical endurance of 10 million operations, this compact PCB mountable relay delivers radiant reliability and instant savings in power consumption. The SPDT configuration with Ag alloy contacts ensures robust performance, while top-tier insulation and dielectric strength provide operator safety. Ideal for control panels and automation, this black, miniature-sized relay stands out as the preferred choice for exporters, suppliers, distributors, and wholesalers alike.

Versatile Applications Across Industries

The SK3F-S-DC24V-1C Sugarcube Relay is perfect for a broad spectrum of applications, from industrial control panels to electronic automation circuits. Its compact design fits seamlessly into plant control environments, machinery, automotive systems, and smart home devices. This relay's reliability and durability make it indispensable in plant process automation, manufacturing lines, and HVAC control, ensuring optimal switching in every environment where safety and efficiency are paramount.

Sample Provision, Export Markets & Certifications

SK3F-S-DC24V-1C relays are readily available for sampling, supporting easy evaluation of market value before large-scale adoption. With robust packing & dispatch processes, they maintain integrity throughout shipping and exchange. These devices cater extensively to main export markets across Asia, Europe, and the Americas. Strict adherence to international certification standards underlines quality, making them an ideal component choice for global control and automation solutions.

FAQ's of SK3F-S-DC24V-1C Sugarcube Relay:

Q: How does the SK3F-S-DC24V-1C Sugarcube Relay improve circuit switching efficiency?

A: This relay offers quick response times-typically under 10 ms for operate and under 5 ms for release-ensuring rapid and reliable switching. Its low power consumption also contributes to overall system efficiency, making it a standout in control panel applications.

Q: What are the main areas where the SK3F-S-DC24V-1C relay can be used?

A: It is widely utilized in industrial control panels, automation systems, general purpose switching, machinery control circuits, and plant applications, providing dependable switching performance in varied electrical environments.

Q: When should I consider using the SK3F-S-DC24V-1C relay in my devices?

A: This relay is recommended when you require a compact, high-capacity switch for PCB mounting, especially in environments demanding up to 10A at 250VAC/30VDC and frequent switching cycles for dependable operation.

Q: Where can I get a sample of SK3F-S-DC24V-1C relay for evaluation?

A: Samples are available from authorized distributors, exporters, and suppliers. This enables you to assess its suitability in your control circuits or new automation projects before making a bulk purchase.

Q: What benefits are offered by the relay's certifications and export-friendly packing?

A: Certified relays ensure compliance with international safety and quality standards, while export-grade packing & dispatch guarantee product integrity and simplify the exchange process, especially for global markets.
