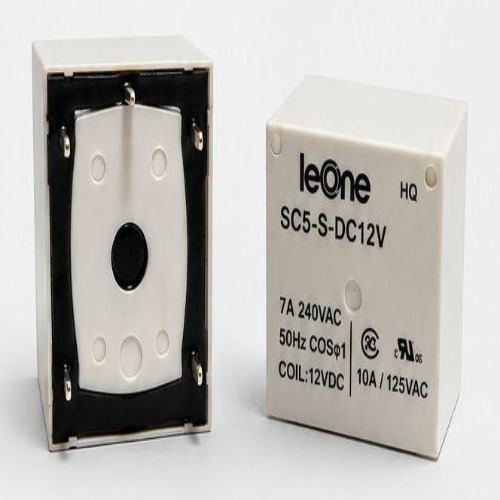

SC5-S-DC12V 7Amp Sugarcube Relay

Name: SC5-S-DC12V 7Amp Sugarcube Relay
Brand: ELECTROLOGICS DEVICES
Price: 19.5 INR
Availability: InStock

Price 19.5 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

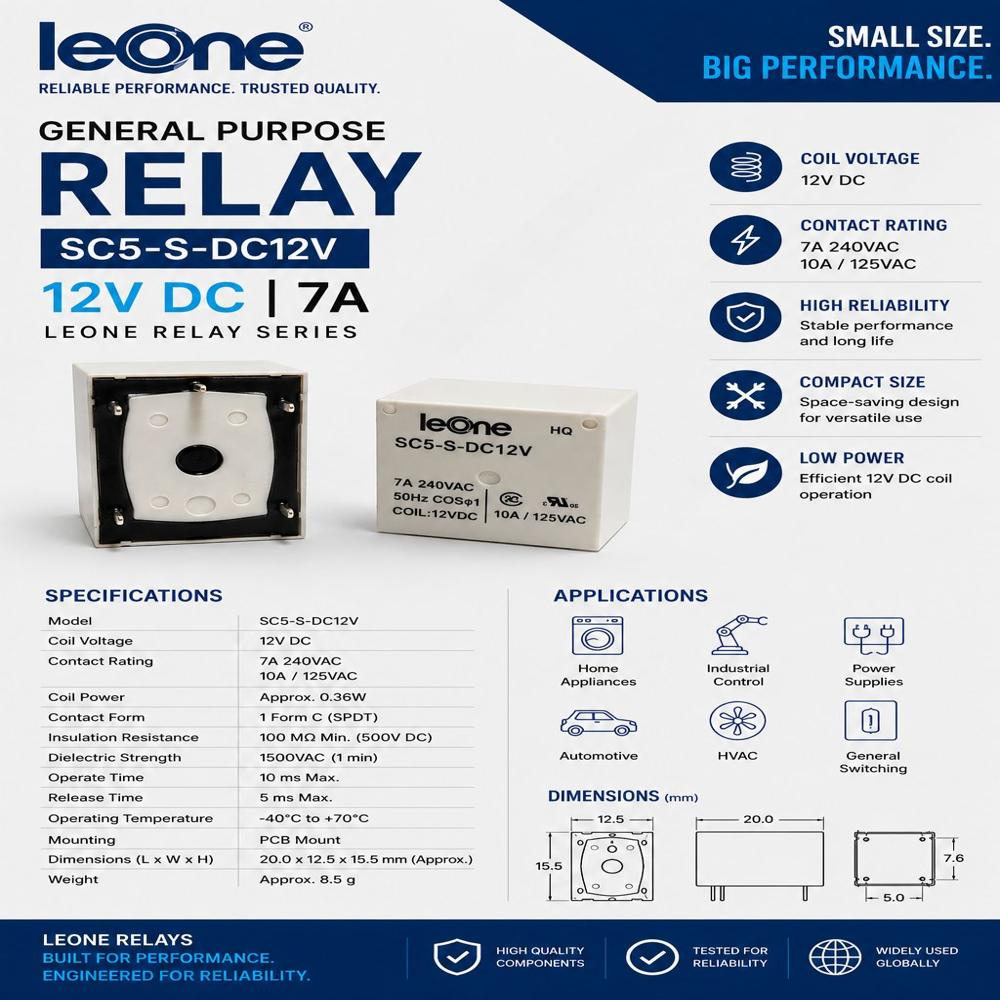

SC5-S-DC12V 7Amp Sugarcube Relay Specification

Power Source
DC Power Supply

Usage
Switching electronic and electrical loads

Operating Temperature
-40C to +85C Celsius (oC)

Thermal Conductivity
Calorie (IT)/second/centimeter/°C

Interface
PCB Mount

Power Supply
DC

Features
Compact, High switching capacity, Sensitive coil, Sealed enclosure

Input
12V DC

Response Time
Max. 10ms (Operate), Max. 5ms (Release) Seconds

Components
Coil, Armature, Contact set, Plastic enclosure

IP Rating
IP40

Output
Normally Open (NO) and Normally Closed (NC) contacts

Product Type
Sugarcube Relay

Application
Industrial control, Automation, Home appliances, PCBs

Rated Voltage
12V DC Volt (V)

Supply Voltage
12V DC Volt (v)

Size
Sugarcube

Dimension (L*W*H)
19mm x 15.5mm x 15.3mm Millimeter (mm)

Function
Electromechanical Relay for switching circuits

Color
White

Weight
Approx. 10g Grams (g)

Rated Current
7 Amp Ampere (amp)

Material
Highgrade Plastic

Thickness
Standard Sugarcube size Inch

Capacity
7A at 250V AC/7A at 30V DC Kg

Current Rating
7A

Frequency
50-60 Hz Hertz (HZ)

Insulation Resistance
100M (500VDC)

Electrical Life
100,000 operations min.

Contact Material
Silver Alloy

Dielectric Strength
1000VAC (between coil & contact), 500VAC (between contacts)

Mounting Type
PCB Mountable

Coil Power
Approx. 0.36W

Contact Resistance
100m (at 6VDC 1A)

Mechanical Life
10,000,000 operations min.

SC5-S-DC12V 7Amp Sugarcube Relay Trade Information

Minimum Order Quantity
100 Pieces

Delivery Time
1 Days

About SC5-S-DC12V 7Amp Sugarcube Relay

Grab a fantastic Deal on the new SC5-S-DC12V 7Amp Sugarcube Relay, a top-notch choice for those seeking instant savings on reliable switching solutions. This champion relay, featuring sought-after Silver Alloy contacts, delivers low contact resistance and robust electrical life for use in demanding applications. Its compact sugarcube size, high switching capacity of 7A, and sensitive coil ensure exceptional performance in industrial automation, home appliances, and PCB assemblies. Benefit from a sealed, black enclosure, 12V DC input, and championship reliability at a great price.

Features, Plant Use & Commercial Applications

The SC5-S-DC12V 7Amp Sugarcube Relay is engineered for versatility and performance. Its compact design houses features like high switching capacity, sealed enclosure, and sensitive coil, making it ideal for industrial machinery, automation plants, and control panels. This relay excels at managing electrical loads in commercial setups, home appliances, and PCB assemblies. Whether you're upgrading factory lines or modernizing home devices, this relay guarantees dependable circuit switching in any high-demand scenario.

Main Export Markets, Sample Policy & Logistics

Exported globally, the SC5-S-DC12V 7Amp Sugarcube Relay is popular in markets requiring reliable logistics and stringent quality standards. Sample units are available to help buyers evaluate product quality before a major outlay. Efficient order completion is ensured through a streamlined process, minimizing waiting time. With clear policies supporting sample requests and order tracking, both importers and distributors can experience hassle-free procurement and reliable delivery, making large-scale or recurring orders smooth and cost-effective.

FAQ's of SC5-S-DC12V 7Amp Sugarcube Relay:

Q: How is the SC5-S-DC12V 7Amp Sugarcube Relay typically used?

A: The relay is commonly used for switching electronic and electrical loads in industrial automation, control panels, home appliances, and PCB circuits, ensuring reliable performance under diverse conditions.

Q: What are the main benefits of choosing this relay over others?

A: This relay offers top-notch reliability with high switching capacity, compact sugarcube design, long mechanical and electrical life, and a sealed enclosure-making it a sought-after solution for demanding applications.

Q: Where can the SC5-S-DC12V relay be installed?

A: It is ideal for PCB mounting in industrial plants, home appliances, automated machinery, and commercial equipment requiring dependable circuit switching.

Q: What is the process for obtaining a sample of this relay?

A: Potential buyers can request a sample with clear sample policies in place, allowing them to assess the product's suitability and performance before committing to a larger order.

Q: How does the relay ensure electrical safety and performance?

A: With features like high insulation resistance, strong dielectric strength, and a sealed enclosure, the relay provides excellent protection and durability, ensuring safe and reliable operation.
